Toshiba unveils 600V IPDs, shrinks motor drive circuit boards by 63%

Toshiba Electronic Devices & Storage Corporation has announced the release of two cutting-edge 600V small intelligent power devices (IPDs) designed for brushless DC motor drives in various applications like air conditioners, air cleaners, and pumps. These new products, known as TPD4163F and TPD4164F, feature output current (DC) ratings of 1A and 2A respectively, and volume shipments have already commenced.

Toshiba’s newly-released IPDs are housed in a surface mount type HSSOP31 package, significantly reducing the mounting area by about 63% compared to their previous products. This reduction not only allows for smaller motor drive circuit boards but also minimizes the height of the motor itself. The new devices are poised to revolutionize design flexibility and contribute to carbon neutrality in energy-saving motor controls.

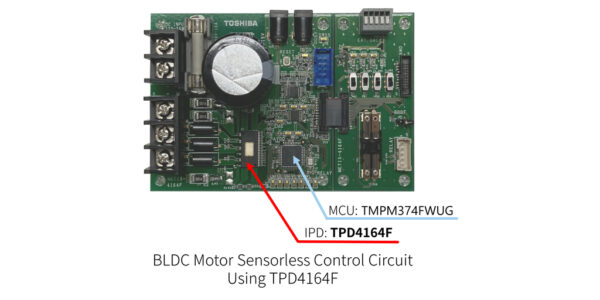

Toshiba unveils 600V IPDs, shrinks motor drive circuit boards by 63%. Image courtesy of Business Wire.

A significant enhancement is the voltage capacity, increased from the previous 500V to 600V. This upgradation offers improved reliability, particularly beneficial for regions suffering from unstable power supply conditions. Toshiba continues to focus on expanding its product line-up, targeting energy-efficient motor control applications with diverse packages and improved device characteristics.

These small intelligent power devices are a significant addition to Toshiba’s ever-expanding portfolio, aimed at streamlining the size of motor drive applications and enhancing energy efficiency. By taking a giant leap from 500V to 600V, Toshiba’s latest IPDs demonstrate a commitment to offering reliable solutions for energy-saving motor controls, even in challenging power conditions.

With the launch of TPD4163F and TPD4164F, Toshiba is setting new benchmarks in the brushless DC motor drive industry, offering manufacturers both design flexibility and carbon neutrality. As these new products hit the market, Toshiba continues to solidify its position as a leader in the development of energy-saving, space-efficient motor control solutions.
